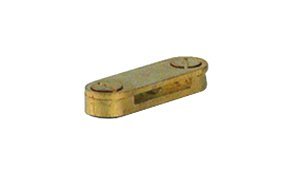

Dc Tape Clip

Mtl – Naval Brass / Gunmetal

These are used with bare copper tape conductor.

Conductor Size (mm):

25 x 3, 25 x 6, 40 x 6, 50 x 6

How DC Tape Clips Are Used

DC tape clips are used to secure bare copper tape conductors to walls, roofs, parapets, and other surfaces in lightning protection and earthing systems. They hold the tape firmly in position and help maintain a neat, continuous conductor route from the air-termination network toward the earth-termination system.

During installation, the clips are fixed at regular intervals along the planned conductor path. The copper tape is then positioned in each clip and fastened so that it remains secure without being crushed or damaged. Clip spacing and fixing methods should follow the project design, site conditions, and applicable lightning protection standards.

Typical Applications

• Fixing down conductors to building facades
• Securing copper tape on roofs and parapets
• Routing conductors toward test joints and earth electrodes
• Keeping exposed tape runs aligned and protected from movement
